WOXSEN UNIVERSITY

School of Technology • Department of Computer Science & Engineering

CAPSTONE RESEARCH PROJECT

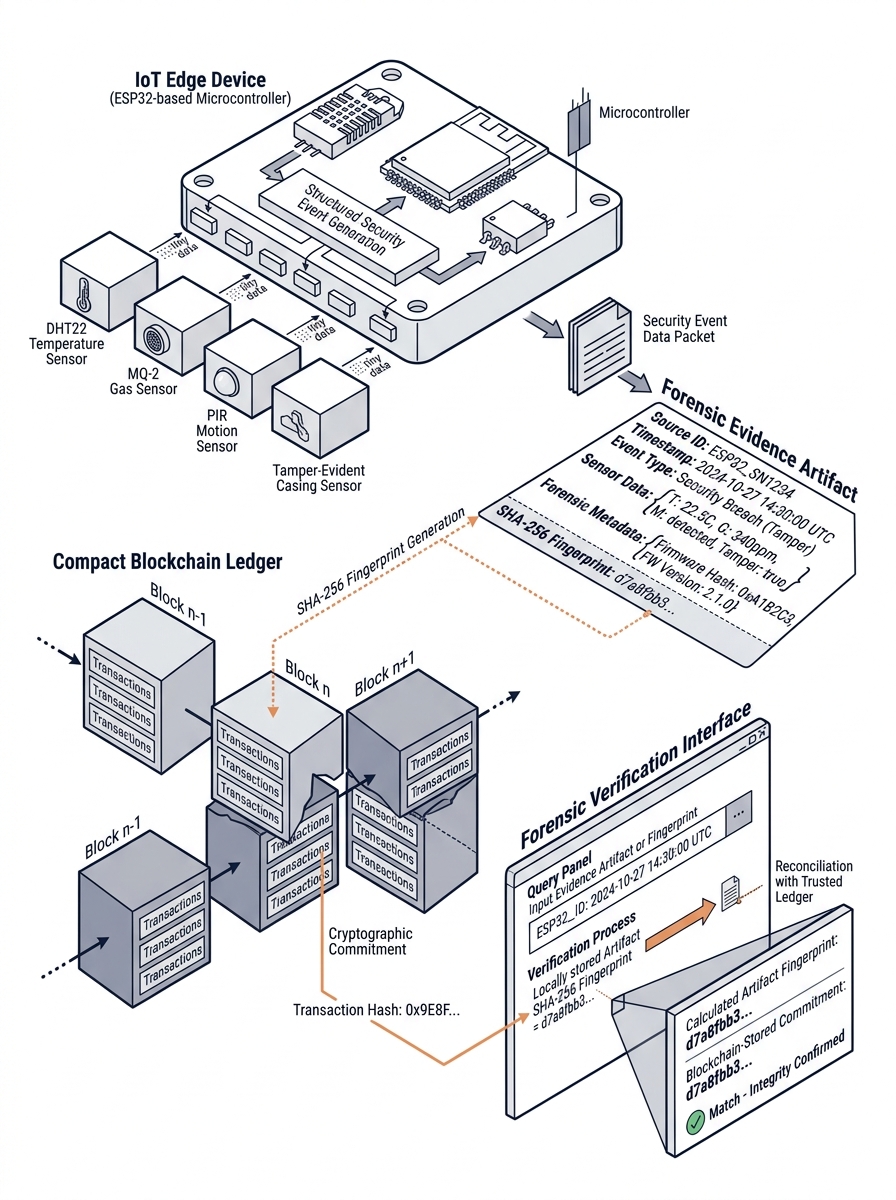

ChainForensics

Blockchain-Backed IoT Forensic Evidence Platform

An evidence platform that preserves security-relevant IoT events and independently verifies their integrity using a blockchain-backed cryptographic commitment.

IoT SECURITY × DIGITAL FORENSICS × BLOCKCHAIN

PROJECT RESEARCH TEAM

#	NAME	ROLL NO.
01	Erolla Rishvin Reddy	24WU0103006
02	Yogamrith Reddy Guggila	24WU0103019
03	Chakradhar	24WU0103020
04	Srinivas Dathreya	24WU0103015

B.TECH CAPSTONE PROJECT • COMPUTER SCIENCE & ENGINEERING • ACADEMIC YEAR 2025–2026

CHAINFORENSICS IoT security event → preserved evidence → independent integrity reference

01 / 25

Presentation Overview

PRESENTATION STRUCTURE 01 → 05

01

Problem & Motivation

02

Theory & Literature

03

CHAINFORENSICS DESIGN

Architecture • Evidence Pipeline • Verification

04

Implementation & Validation

05

Results & Conclusion

From problem definition to validated ChainForensics results.

02 / 25

The Problem: Can IoT Evidence Still Be Trusted After an Incident?

IoT Device

SENSOR TELEMETRY

Security Event

EVENT TRIGGERED

LOCAL LOG / DATABASE

EVENTEVT-00125

STATUSRECORDED

RECORDED EVIDENCE

NO INDEPENDENT REFERENCE

SYSTEM COMPROMISED

Forensic Threat Surface

Threat	What can happen?	Forensic Concern
MODIFICATION	Recorded evidence can be changed after collection.	Compromises evidence integrity. Attackers can alter logs to manipulate the investigation narrative and hide malicious activity.
DELETION	Recorded evidence can be removed after collection.	Compromises evidence availability. Attackers can erase logs to create investigative blind spots, making reconstruction impossible.
REPLAY	Previously captured events can be reintroduced.	Compromises temporal authenticity. Attackers can re-inject old telemetry to spoof system states and bypass chronological security checks.

Can the original evidence still be verified?

Why Existing IoT Logging Is Not Enough

CONVENTIONAL APPROACH

LIMITATION

FORENSIC REQUIREMENT

Local database / logs

Evidence remains dependent on the original system

Independent reference

Mutable records

Records may be changed after collection

Post-collection integrity verification

Centralized trust

Verification depends on the same trust domain

External verification path

Telemetry collection

Raw telemetry is not necessarily preserved as forensic evidence

Forensic evidence preservation

WHERE THE GAP APPEARS

EVENT RECORDED

→

SYSTEM COMPROMISED

→

RECORD QUESTIONED

HOW CAN THE PRESERVED RECORD BE VERIFIED LATER?

The research gap is the absence of an independent mechanism
for later verification of preserved IoT evidence.

IoT Security

Digital Forensics

Blockchain

CHAINFORENSICS

Internet of Things

Connected physical devices collect, communicate and exchange data with digital systems

01 / DEVICES & SENSORS

Sense the physical environment and generate data

Temperature Motion Humidity Light

Physical world → Digital data

DATA CAPTURE

02 / GATEWAY / EDGE

Process, filter and forward device data

Local processing • Connectivity • Data forwarding

DATA TRANSPORT

03 / CLOUD / PLATFORM

Store, manage and analyze IoT data

Data storage • Processing • Analytics

DATA SERVICES

04 / APPLICATIONS & USERS

Consume IoT data through applications and services

Monitoring • Visualization • Decision support

WHAT DEFINES IoT?

CONNECTED

Physical devices communicate with digital systems.

SENSING

Sensors continuously capture information from the environment.

DATA EXCHANGE

Device data moves through communication and computing layers.

DISTRIBUTED

Devices, gateways, platforms and applications operate as interconnected components.

DEVICES & SENSORS

Component	Role	Example
Device	Performs sensing/communication	ESP32
Sensor	Captures physical condition	Temperature
Edge/Gateway	Processes and forwards data	Gateway

CHAINFORENSICS MAPPING

Sensors → ESP32 → MQTT → Evidence Gateway

Security-relevant telemetry → Structured security event

IoT Security: Where Can an Attack Occur?

IoT expands the attack surface across devices, communication channels and data infrastructure.

01 / DEVICE LAYER

ASSETS

Device Identity
Sensors
Firmware
Physical Interface

ATTACK VECTORS

Device Spoofing
Physical Tampering
Firmware / State Tamper

IMPACT

Signal authenticity can be compromised.

02 / COMMUNICATION LAYER

ASSETS

MQTT Messages
Event Sequence
Device Packets

ATTACK VECTORS

Replay
Message Manipulation
Sequence Disruption

IMPACT

Transit integrity and event ordering can be disrupted.

03 / DATA / BACKEND LAYER

ASSETS

Telemetry Database
System Logs
Audit Records

ATTACK VECTORS

Record Modification
Selective Deletion
Timestamp Manipulation

IMPACT

Post-incident evidence can become difficult to verify.

CORE IoT SECURITY REQUIREMENTS

CONFIDENTIALITY •

CHAINFORENSICS FOCUS

INTEGRITY

• AVAILABILITY • IDENTITY

Integrity: detect unauthorized modification of records and evidence.

IoT Threat → Security Event → Evidence → Forensic Verification

Security controls protect the system; ChainForensics focuses on preserving and verifying the resulting security evidence.

Blockchain Fundamentals

A distributed ledger maintains an ordered, cryptographically linked history of committed data

WHAT IS BLOCKCHAIN? A blockchain is a distributed ledger in which transactions are recorded into an ordered chain of blocks and protected through cryptographic mechanisms.

01 / TRANSACTION

DATA

eventId

type

value

timestamp

Committed data

→

02 / HASH

Input → Fixed-length digest

0x7f83b165...

One-way cryptographic fingerprint

→

03 / BLOCK N

BLOCK #1042

Previous Hash

0x91af...

Transaction / Data

0x7f83...

Merkle Root

0xa83c...

Timestamp

T

HASH LINK

Hash(Block N) →
Previous Hash(Block N+1)

Changing earlier block data changes its hash and breaks the expected linkage.

04 / BLOCK N+1

BLOCK #1043

Previous Hash

= Hash(Block N)

Transactions

...

Merkle Root

...

Timestamp

...

→

DISTRIBUTED LEDGER

NODE 01

NODE 02

NODE 03

Shared state across participating nodes

Consensus → agreement on accepted ledger state

01 / CRYPTOGRAPHIC HASH

Fixed-length digest derived from input data.

Mechanism: Integrity comparison

02 / BLOCK STRUCTURE

Groups transactions with ordering and metadata.

Mechanism: Hash-linked history

03 / DISTRIBUTED LEDGER

Maintains ledger state across participating nodes.

Mechanism: Independent distributed reference

04 / SMART CONTRACT

Programmatic logic executed by a blockchain network.

Mechanism: Deterministic evidence-registration rules

INPUT ↓ CONTRACT LOGIC ↓ STATE CHANGE

WHY THIS MATTERS FOR EVIDENCE

A blockchain does not need to contain the complete IoT evidence. A compact cryptographic commitment can serve as an independent reference against which preserved evidence can later be checked.

BLOCKCHAIN STORES

Cryptographic commitment

OFF-CHAIN SYSTEM STORES

Complete evidence payload

Evidence → Hash → Blockchain

Evidence → Preservation Storage

Blockchain provides a trusted historical reference for what was committed; it does not independently prove that the physical event occurred.

Evidence hash ≠ blockchain transaction hash
Evidence hash → fingerprint of the committed payload | Transaction hash → identifier for the blockchain transaction

Digital Forensics

A structured process for identifying, preserving, examining and interpreting digital evidence

WHAT IS DIGITAL FORENSICS?

Digital forensics is the systematic identification, collection, preservation, examination, analysis and reporting of information from digital sources.

INTEGRITY

Evidence should remain consistent with its preserved state.

PROVENANCE

The origin and handling history of evidence should remain traceable.

CHAIN OF CUSTODY

Evidence handling and transitions should be documented throughout its lifecycle.

FORENSIC LIFECYCLE

01 / IDENTIFY

Scoping

Locate relevant evidence sources.

Devices • Communication • Storage

→

02 / COLLECT

Acquisition

Acquire relevant digital information while preserving the original state as far as practicable.

→

CHAINFORENSICS FOCUS

03 / PRESERVE

Evidence Protection

Protect evidence from alteration and maintain its provenance for later examination.

→

04 / EXAMINE

Inspection

Extract and inspect relevant evidence attributes.

Payload • Sequence • Timestamp

→

05 / ANALYZE

Correlation

Interpret evidence and correlate events, context and timelines.

Timeline • Context • Correlation

→

06 / REPORT

Findings

Document the examination and communicate the resulting findings.

Evidence may be collected at one point in time and examined later.

Preservation protects the relationship between the captured state and the state examined later.

EVIDENCE STATE TRANSFORMATION

Raw Digital Source

↓

Relevant Event

↓

Preserved Evidence

↓

Examination → Finding

Raw telemetry ≠ automatically forensic evidence
Relevant security event + contextual preservation → forensic evidence

WHY THIS MATTERS IN IoT

Sensors

↓

Edge Device

↓

Communication

↓

Gateway → Backend → Digital Evidence

Forensic Property	What it protects
Integrity	Consistency of preserved evidence
Provenance	Origin and handling history
Chain of Custody	Documented evidence transitions

CHAINFORENSICS APPLICATION

IoT Event → Digital Evidence → Preservation → Integrity Verification

The forensic challenge is not only collecting an IoT event — it is preserving enough information to determine whether the evidence examined later corresponds to the evidence originally captured.

Literature Review

Existing research connects IoT forensics with blockchain, but approaches differ in evidence handling, scope and verification strategy

STUDY / APPROACH	IoT	BLOCKCHAIN	FORENSICS	EVIDENCE FOCUS	KEY LIMITATION / SCOPE
Ryu et al. IoT DF Framework	✓	✓	✓	Evidence management / chain of custody	Framework-oriented; broad IoT forensic architecture
Kumar et al. IoF • 2021	✓	✓	✓	Case chain / evidence chain / custody	Transparency, distributed investigation and cross-border scenarios
Akinbi et al. SLR • 2022	✓	✓	✓	Integrity / provenance / traceability / verification	Systematic review; not a single implemented platform
Unified IoT DF 2023	✓	✓	✓	Authenticity / integrity / privacy	Holistic platform; scalability and performance evaluation
IIoT Blockchain DF 2024	✓	✓	✓	Evidence storage / retrieval / tracing	Industrial IoT specialization; evidence acquisition focus

Selected literature • 2021–2024 | DOIs: 10.1016/j.future.2021.02.016 • 10.1016/j.fsidi.2022.301470 • 10.1016/j.iot.2023.100968 • 10.1016/j.aej.2023.12.021

WHAT THE LITERATURE ALREADY ESTABLISHES

Blockchain can strengthen evidence integrity

→

Blockchain can support provenance and chain of custody

→

IoT forensics requires distributed evidence handling

REMAINING FOCUS

Independent verification of a preserved IoT evidence record

Existing Research → Evidence Protection

ChainForensics → Independent Evidence Verification

What Is Missing in Existing Approaches?

The research gap is not blockchain-based evidence protection itself—it is the specific verification path we implement

CAPABILITY	EXISTING RESEARCH	CHAINFORENSICS	POSITIONING
IoT Evidence Collection	✓	✓	Structured security-event capture
Evidence Integrity	✓	✓	Deterministic evidence fingerprinting
Provenance / Chain of Custody	✓	✓	Explicit evidence provenance
Blockchain Evidence Anchoring	✓	✓	Compact cryptographic commitment
Independent Verification	Varies by framework and implementation	✓	Preserved evidence ↔ external blockchain commitment PRIMARY RESEARCH FOCUS
Forensic Verdict	Varies by approach	✓	INTACT / ANOMALY / TAMPERED

WHERE THE GAP REMAINS

PRESERVED EVIDENCE

The record available for later examination

RECONCILIATION

Recalculate and compare

HASH_LOCAL ↔ HASH_ANCHOR

TRUSTED REFERENCE

Externally maintained cryptographic commitment

Match → evidence remains consistent with the anchored state | Mismatch → cryptographic integrity divergence

Independent verification of a preserved IoT evidence record

The preserved evidence is reconstructed and compared against an externally maintained cryptographic commitment rather than relying only on the original storage system.

IoT Security + Digital Forensics + Blockchain

↓

Independent Evidence Verification

↓

ChainForensics

Scope: integrity and later verification of preserved security evidence

• 02 / PART 1 — THEORY

IoT Forensics & Evidence Integrity

IoT evidence must be preserved with sufficient integrity and provenance for reliable forensic verification

WHY IoT FORENSICS?

DISTRIBUTED EVIDENCE MODEL

IoT evidence is generated across multiple layers rather than originating from one static host.

01 SENSORSAnalog / digital signal transduction

↓

02 ESP32 / EDGEEphemeral buffer + device identity + sequence

↓

03 MQTT TRANSPORTTransit messages across network links

↓

04 GATEWAY NODEValidation + normalization + local handling

↓

05 BACKEND STORAGEPersistent evidence-related records

VOLATILEEdge buffers may disappear or be overwritten.

HETEROGENEOUSDifferent layers may represent the same event differently.

MULTI-HOPEvidence crosses several trust and transport boundaries.

FORENSIC IMPLICATION

IoT evidence requires end-to-end provenance rather than single-host trust.

THE FORENSIC SHIFT

EVENT → DIGITAL EVIDENCE

Raw telemetry is not automatically forensic evidence. Relevant events must retain sufficient context to be examined later.

SECURITY EVENT

IDEVT-00125

DEVICEESP32-NODE-001

SEQUENCE#125

SENSORMQ-2 Gas

READING712 ppm

TIMESTAMPT0

SEVERITYCRITICAL

RAW SECURITY EVENT

↓

PRESERVE + BIND CONTEXT

↓

DIGITAL EVIDENCE

{
  "id": "EVT-00125",
  "dev": "ESP32-NODE-001",
  "seq": 125,
  "gas_ppm": 712,
  "sev": "CRITICAL"
}

Context transforms an isolated reading into an examinable security record.

WHAT MUST BE VERIFIED?

FORENSIC REQUIREMENTS

PROPERTY	FORENSIC QUESTION
INTEGRITY	Has the preserved evidence changed?
PROVENANCE	Where did the evidence originate?
IDENTITY	Which device generated the event?
SEQUENCE	Is the event consistent with the expected order?
TIMING	Is the recorded temporal context coherent?
LIFECYCLE	Can the evidence path be reconstructed?

PRESERVED STATE

↑↓

LATER EXAMINATION

MUST REMAIN RECONCILABLE

The forensic objective is to determine whether the evidence examined later remains consistent with the state preserved during collection.

CHAINFORENSICS APPLICATION

IoT Event → Digital Evidence → Preservation → Integrity Verification

THEORY → IMPLEMENTATION

• 03 / PART 1 → PART 2

From Theory to ChainForensics

The three domains converge around one requirement: preserve IoT security evidence so its integrity can be independently verified later

01 / INTERNET OF THINGS ROLE: EVENT ORIGIN

OBSERVE THE PHYSICAL WORLD

Connected devices and sensors generate security-relevant telemetry.

Sensor → ESP32 → Security Event Structured IoT Event

02 / IoT SECURITY ROLE: SECURITY CONTEXT

DETECT SECURITY-RELEVANT CONDITIONS

Device, communication and backend layers introduce distinct attack surfaces and integrity risks.

Threat Condition → Detection → Security Event Security-Relevant Evidence Candidate

03 / DIGITAL FORENSICS ROLE: FORENSIC VERIFICATION

PRESERVE AND EXAMINE DIGITAL EVIDENCE

Evidence requires integrity, provenance and a reproducible examination path.

Collect → Preserve → Examine → Finding Forensically Examined Record

04 / BLOCKCHAIN ROLE: TRUSTED REFERENCE

MAINTAIN AN INDEPENDENT TRUSTED REFERENCE

A cryptographic commitment can be anchored in a distributed ledger and checked later.

Evidence Digest → Ledger Commitment → Later Check Independent Cryptographic Reference

CHAINFORENSICS

BLOCKCHAIN-BACKED IoT FORENSIC EVIDENCE PLATFORM

Capture → Preserve → Anchor → Verify

Preserve a security-relevant IoT event and later reconcile the preserved evidence against an independently anchored cryptographic commitment.

01 CAPTURE

IoT security event

→

02 PRESERVE

Structured evidence record

→

03 ANCHOR

Cryptographic commitment

→

04 VERIFY

Independent reconciliation

WHAT BLOCKCHAIN CONTRIBUTES Trusted reference for the committed evidence state

WHAT FORENSIC VERIFICATION CONTRIBUTES Detection of divergence between preserved evidence and the trusted reference

DOMAIN	REQUIREMENT	CHAINFORENSICS RESPONSE
IoT	Capture distributed physical-world events	Structured security-event generation
IoT Security	Protect / detect integrity-relevant conditions	Security event context
Digital Forensics	Preserve and examine evidence	Evidence provenance + verification
Blockchain	Provide independent trusted reference	Cryptographic evidence anchoring

PRIMARY TECHNICAL FOCUS

Independent verification of preserved IoT security evidence

The system does not rely solely on the original storage environment to determine whether the preserved record remains consistent.

03 / PART 2 — PROJECT

ChainForensics — System Architecture

From IoT security-event generation to independent forensic verification

END-TO-END EVIDENCE ARCHITECTURE

01

IoT EDGE

ROLE
Generate security-relevant events

TECHNOLOGY
ESP32 • Sensors • Security Event Engine

OUTPUT
Structured Security Event

→

02

EVIDENCE INGESTION

ROLE
Validate and create a deterministic evidence representation

TECHNOLOGY
Node.js / TypeScript
Zod • RFC 8785 • SHA-256

OUTPUT
Evidence Digest

→

03

OFF-CHAIN PRESERVATION

ROLE
Store the complete evidence payload

TECHNOLOGY
SQLite / Prisma
IPFS / Helia

OUTPUT
Complete Evidence FULL PAYLOAD

Complete evidence remains off-chain; only the cryptographic commitment is anchored on-chain.

SEPARATE TRUST DOMAIN

04

ON-CHAIN TRUST ANCHOR

ROLE
Maintain an independent cryptographic reference

TECHNOLOGY
Ethereum / Hardhat
EvidenceRegistry.sol

OUTPUT
Evidence Hash Commitment
COMPACT REFERENCE • NOT COMPLETE EVIDENCE

→

05

FORENSIC VERIFICATION

ROLE
Reconstruct preserved evidence and reconcile it with the trusted commitment

PRESERVED EVIDENCE

↓

RECONSTRUCT

↓

HASH_LOCAL ↔ HASH_ANCHOR

INTACT | ANOMALY | TAMPERED

13 / 25

03 / PART 2 — PROJECT

IoT Edge Implementation

The ESP32 converts sensor conditions and physical security events into structured security records.

01 / PHYSICAL INPUTS

ESP32 MULTI-SENSOR EDGE

SENSOR	PURPOSE	PIN
DHT22	Temperature / humidity	GPIO 4
MQ-2	Gas / smoke	GPIO 34
PIR	Motion	GPIO 27
LDR	Light level	GPIO 32
TAMPER	Enclosure state	GPIO 21

Tamper switch → enclosure-state security event

EDGE ROLE

Sense → evaluate → package security-relevant events

→

02 / EDGE PROCESSING

ESP32 + FreeRTOS

SENSOR TASK

↓

SECURITY ENGINE

↓

EVENT QUEUE

↓

MQTT DISPATCH

FreeRTOS separates sensing, event evaluation and network dispatch.

SECURITY EVENT RULES

INPUT	CONDITION	EVENT
MQ-2	`> 450 ppm`	`GAS_SPIKE`
PIR	`HIGH • 22:00–06:00`	`PERIMETER`
TAMPER	`OPEN`	`ENCLOSURE_OPEN`

→

03 / SECURITY EVENT

STRUCTURED EDGE OUTPUT

EVT-00125

DEVICEESP32-NODE-001

SEQUENCE125

TRIGGERGAS_SPIKE

SENSORMQ-2

READING712 ppm

SEVERITYCRITICAL

{
  "id":"EVT-00125",
  "dev":"ESP32-NODE-001",
  "seq":125,
  "type":"GAS_SPIKE",
  "gas_ppm":712,
  "sev":"CRITICAL"
}

Published via MQTT to the evidence gateway.

TELEMETRY ≠ FORENSIC EVIDENCE

Routine sensor readings provide telemetry; security-relevant conditions are transformed into structured events for downstream evidence processing.

EDGE OUTPUT → MQTT → EVIDENCE GATEWAY

QoS 1 • iot/security/events

14 / 24

• PART 2 — PROJECT

Evidence Ingestion & Canonicalization

The gateway validates security events, creates a deterministic representation, and prepares the evidence fingerprint.

EVIDENCE INGESTION PIPELINE

01 / RECEIVE

MQTT

iot/security/events
QoS 1

Security event received from ESP32 edge

→

02 / VALIDATE

Zod Schema

Required fields
Types
Value ranges

Invalid input → reject

→

03 / CANONICALIZE

RFC 8785 JCS

Deterministic
canonical bytes

Same valid input → same canonical representation

→

04 / FINGERPRINT

SHA-256

256 bits
32 bytes

EVIDENCE HASH

0xa8f913...c724

→

05 / RECORD

EVT-00125

HASH 0xa8f9...
CID bafybeic...

Structured evidence metadata

WHY CANONICALIZATION MATTERS

Equivalent JSON can have different byte representations. RFC 8785 JCS provides a standardized canonical representation so the same valid input is serialized consistently before hashing.

SEMANTICALLY EQUIVALENT INPUT → RFC 8785 JCS → CANONICAL BYTES → SHA-256

VALIDATED EVENT → CANONICAL REPRESENTATION → EVIDENCE FINGERPRINT

15 / 24

• PART 2 — PROJECT

Evidence Ingestion & Cryptographic Fingerprinting

A validated event is canonicalized and fingerprinted with SHA-256 before evidence preservation and anchoring.

VALIDATE → CANONICALIZE → HASH → PRESERVE / ANCHOR

01 / EVIDENCE PROCESSING

VALIDATED EVENT

EVT-00125

ESP32-NODE-001

GAS_SPIKE

712 ppm

CRITICAL

↓

RFC 8785 JCS

Deterministic canonical representation

↓

SHA-256

↓

EVIDENCE HASH

0xa8f913...c724

02 / DIGEST DIVERGENCE

ORIGINAL

gas_ppm = 712

↓

a8f913...

≠

MODIFIED

gas_ppm = 120

↓

91d2e7...

One changed field produces a different SHA-256 digest.

The hash fingerprints the evidence representation; it is not the evidence itself.

CANONICAL EVIDENCE → SHA-256 FINGERPRINT → READY FOR TRUST ANCHOR

16 / 24

• PART 2 — PROJECT

Evidence Preservation & Provenance

Complete evidence is preserved off-chain while provenance and a separate blockchain commitment support later verification.

GENERATE → PRESERVE → ANCHOR → VERIFY

01 / EVIDENCE PRESERVATION

Complete Evidence

The full canonical evidence payload remains off-chain.

EVT-00125

↓

SQLite / Prisma + IPFS / Helia

↓

Preserved Payload

SQLite / Prisma
Metadata + retrieval context

IPFS / Helia
Content-addressed evidence payload

02 / PROVENANCE RECORD

Evidence IDEVT-00125

Device IDESP32-NODE-001

Sequence125

Timestamp1788912000

Evidence Hash0xa8f913…c724

Content CIDbafybeic…9x2

03 / TRUST SEPARATION

OFF-CHAIN

Complete evidence
IPFS / Helia

Separate trust domain

→

ON-CHAIN

evidenceHash
Blockchain

PROVENANCE ≠ BLOCKCHAIN
Provenance records the origin and handling context of evidence; blockchain provides an independent cryptographic reference for a committed state.

PRESERVE THE EVIDENCE — SEPARATE THE TRUST REFERENCE

17 / 24

• PART 2 — PROJECT

Blockchain Evidence Anchoring

A compact cryptographic commitment is registered on-chain for later forensic verification.

ANCHOR THE COMMITMENT — NOT THE COMPLETE EVIDENCE

Complete evidence remains off-chain; the blockchain stores the cryptographic commitment.

ANCHORING PIPELINE

01 / EVIDENCE

EVT-00125

Complete evidence
remains off-chain

IPFS / Helia
+
SQLite / Prisma

→

02 / COMMITMENT

SHA-256

↓

32-BYTE DIGEST

↓

0xa8f913…c724

Fingerprint of the canonical evidence representation

→

03 / SMART CONTRACT

EvidenceRegistry.sol

↓

registerEvidence(...)

↓

evidenceHash

Ethereum / EVM

COMMITMENT REGISTERED

Duplicate registration rejected

→

04 / BLOCKCHAIN STATE

Transaction

↓

Block

↓

Contract State

↓

HASH_ANCHOR

Local EVM testbed

ON-CHAIN COMMITMENT — EVT-00125

evidenceHash 0xa8f913…c724

isRegistered true

metadataCid bafybeic…9x2

timestamp 1788912000

IMPORTANT: EVIDENCE HASH ≠ TRANSACTION HASH

Evidence hash → fingerprints evidence | Tx hash → identifies blockchain transaction

Forensic reconciliation compares the reconstructed evidence hash with evidenceHash stored in contract state.

OFF-CHAIN: Complete evidence → IPFS / Helia • Metadata → SQLite / Prisma

ON-CHAIN: Evidence commitment → Blockchain

BLOCKCHAIN STORES THE COMMITMENT — FORENSIC VERIFICATION USES IT AS AN EXTERNAL REFERENCE

18 / 24

• 03 / PART 2 — PROJECT

How Is Evidence Verified Later?

Preserved evidence is reconstructed locally and reconciled with the trusted blockchain commitment.

Independent verification = local reconstruction + external commitment reference

01 / LOCAL RECONSTRUCTION

SQLite / Prisma

+

IPFS / Helia

↓

Evidence retrieval

↓

RFC 8785

↓

SHA-256

↓

HASH_LOCAL

RECONSTRUCT

→

02 / ON-CHAIN REFERENCE

EvidenceRegistry.sol

Evidence ID

↓

getEvidence(id)

↓

EvidenceRecord

↓

evidenceHash

↓

HASH_ANCHOR

RETRIEVE

→

03 / CRYPTOGRAPHIC RECONCILIATION

HASH_LOCAL

↕

HASH_ANCHOR

MATCH → RECONCILED

DIFFER → DIVERGENCE

EVT-00125 | HASH_LOCAL = HASH_ANCHOR

04 / SEVEN-DIMENSION FORENSIC EVALUATION

01 Schema Integrity

02 Device Identity

03 Sequence Integrity

04 Temporal Consistency

05 Payload Hash

06 IPFS CID Resolution

07 Blockchain Anchor

Structural/contextual checks + cryptographic checks

FORENSIC INTERPRETATION

HASH MATCH → evidence reconciles with the trusted commitment

HASH MISMATCH → TAMPERED

RPC UNAVAILABLE → ANOMALY

NO ANCHOR → UNANCHORED

A contextual deviation does not automatically establish evidence tampering.

THE BLOCKCHAIN PROVIDES THE REFERENCE — THE FORENSIC VERIFIER PERFORMS THE RECONCILIATION

19 / 24

• PART 2 — PROJECT

From Verification to Forensic Finding

Verification findings are evaluated through cryptographic and contextual checks to determine the evidence status.

THE VERDICT DEPENDS ON THE TYPE OF DEVIATION

Cryptographic divergence → TAMPERED | Contextual deviation → ANOMALY

DECISION HIERARCHY

VERIFY
ANCHOR

→

COMPARE
HASH

→

HASH_LOCAL ↔ HASH_ANCHOR

DIFFER

↓

TAMPERED

MATCH

↓

CONTEXT CHECK

DEVIATION

↓

ANOMALY

CLEAN

↓

INTACT

PRIMARY FORENSIC FINDINGS

INTACT	Hash reconciles + contextual checks clean
ANOMALY	Contextual deviation / infrastructure unavailable
TAMPERED	Cryptographic divergence / anchored record mismatch

Cryptographic divergence determines the primary tampering finding.

SPECIAL VERIFICATION STATES

UNANCHORED
No external commitment → independent reconciliation unavailable.

RPC_UNAVAILABLE
Reference cannot be evaluated → ANOMALY

Neither state is equivalent to TAMPERED.

THE VERIFIER DECIDES — THE BLOCKCHAIN SUPPLIES THE REFERENCE

20 / 24

• PART 2 — PROJECT

Threat Scenarios Tested

Nine controlled testbed scenarios evaluate forensic responses to tampering, anomalies and isolation conditions.

9 EXECUTED VALIDATION SCENARIOS

#	SCENARIO	TEST CONDITION	VERIFICATION SIGNAL	FINDING	RESULT
01	Clean Evidence	Nominal event; record unchanged	Required checks + hash reconciliation	INTACT	PASS
02	Database Modification HERO SCENARIO	Gas telemetry changed: `712 → 120 ppm`	Recalculated SHA-256 vs trusted anchor	TAMPERED	PASS
03	Evidence Deletion	Anchor remains; local evidence absent	External commitment remains; expected evidence absent	TAMPERED	PASS
04	Anchor Divergence	Local evidence does not reconcile with anchor	`HASH_LOCAL ≠ HASH_ANCHOR`	TAMPERED	PASS
05	Replay Attack	Previously captured event re-injected	Sequence / temporal checks	ANOMALY	PASS
06	Sequence Manipulation	Sequence discontinuity / rollback	Monotonic sequence analysis	ANOMALY	PASS
07	Device Spoofing	Unauthorized device attempts ingress	Device identity validation	ANOMALY	PASS
08	Blockchain / RPC Failure	Blockchain reference unavailable during verification	Hardhat RPC unavailable / timeout	ANOMALY	PASS
09	Cross-Device Isolation	Device attempts access outside its evidence scope	Access-control / isolation check	ISOLATED / ACCESS BLOCKED	PASS

9 SCENARIOS · 1 INTACT · 3 TAMPERED · 4 ANOMALY · 1 ISOLATED

Operational anomaly ≠ cryptographic integrity divergence. | RPC failure affects verification availability; it does not establish evidence tampering.
Scope: Results demonstrate implemented rules for executed testbed scenarios; they do not establish universal attack detection.

ALL 9 EXECUTED SCENARIOS MATCHED THEIR EXPECTED IMPLEMENTED OUTCOME

21 / 25

• PART F — VALIDATION / DEMONSTRATION

Tampering Demonstration

A post-collection modification changes the reconstructed evidence hash and breaks reconciliation with the trusted commitment.

SCENARIO — Administrator modifies the recorded gas value after the evidence was anchored.

01 / ORIGINAL EVIDENCE

ANCHORED

EVT-00125

ESP32-NODE-001

MQ-2

712 ppm

CRITICAL

↓

HASH_ANCHOR

0xa8f913...c724

Trusted blockchain commitment

02 / LOCAL MODIFICATION

712 ppm

↓

120 ppm

Δ −592 ppm

UPDATE events
SET gas_ppm = 120, severity = 'NOMINAL'
WHERE id = 'EVT-00125';

DATABASE RECORD CHANGED

Post-collection local record is modified; the external commitment remains unchanged.

03 / FORENSIC RECHECK

RECONSTRUCT
↓
SHA-256
↓

HASH_LOCAL

0x91d2e7...4af1

≠

HASH_ANCHOR

0xa8f913...c724

TAMPERED

Evidence no longer reconciles with the trusted commitment.

ROLE SEPARATION

BLOCKCHAIN → supplies HASH_ANCHOR
FORENSIC VERIFIER → recomputes HASH_LOCAL and detects divergence

The verifier detects the divergence — not the blockchain alone.

Integrity ≠ Attribution: The mismatch establishes cryptographic divergence; it does not identify who performed the modification.

ORIGINAL COMMITMENT REMAINS UNCHANGED → LOCAL EVIDENCE DIVERGES

22 / 25

• PART F — VALIDATION / DEMONSTRATION

Implementation & Validation Results

The implemented pipeline was validated through unit, integration, security-isolation, and forensic scenario testing.

89 / 89

UNIT TESTS

Canonicalization, schemas, hashing & core logic

PASS

25 / 25

INTEGRATION TESTS

MQTT → ingestion → IPFS → blockchain

PASS

TASK #19

SECURITY & ISOLATION AUDIT

Security-boundary and architectural isolation

PASS

INDEPENDENT

FORENSIC VERIFICATION

Independent of the local tamper-audit log

VALIDATED

EXECUTED FORENSIC SCENARIOS
9 executed scenarios

1 INTACT • 3 TAMPERED • 4 ANOMALY • 1 ISOLATED

SCENARIO	FINDING	RESULT
Clean Evidence	INTACT	PASS
Database Modification	TAMPERED	PASS
Evidence Deletion	TAMPERED	PASS
Anchor Divergence	TAMPERED	PASS
Replay Attack	ANOMALY	PASS
Sequence Manipulation	ANOMALY	PASS
Device Spoofing	ANOMALY	PASS
Blockchain / RPC Failure	ANOMALY	PASS
Cross-Device Isolation	ISOLATED / ACCESS BLOCKED	PASS

All 9 executed scenarios produced the expected implemented classification or isolation outcome.

KEY VALIDATION FINDING

Database modifications were detected independently of the local tamper-audit log.

The verifier reconstructed the evidence, recomputed HASH_LOCAL, retrieved HASH_ANCHOR, and detected cryptographic divergence.

FORENSIC INDEPENDENCE

Verdict generation does not rely on TamperAuditLog as source of truth.

Scope: Results demonstrate implemented rules for executed testbed scenarios; they do not establish universal attack detection.

23 / 25

• PART G — CONCLUSION

Contribution & Future Direction

ChainForensics connects IoT security-event capture, evidence preservation and blockchain-backed forensic verification.

01 / CONTRIBUTION

01 — Independent Verification

Reconstruct preserved evidence and reconcile HASH_LOCAL with the trusted HASH_ANCHOR.

02 — Evidence Preservation

Preserve the complete evidence payload off-chain with provenance and content reference.

03 — Blockchain Commitment

Use a compact cryptographic commitment as an independent historical reference.

04 — Forensic Verdict Logic

Classify verification outcomes as INTACT, ANOMALY or TAMPERED.
UNANCHORED is handled as a special verification state.

02 / LIMITATIONS

01 — Testbed Scope

Validation covers the implemented ChainForensics testbed and executed scenarios.

02 — Sensor Environment

The prototype uses a defined ESP32 sensor configuration rather than diverse real-world deployments.

03 — Local Blockchain

Blockchain validation uses a Hardhat local EVM rather than a production network.

04 — Attack Coverage

Executed scenarios demonstrate implemented rules; they do not establish universal attack detection.

03 / FUTURE WORK

01 — Distributed Deployment

Evaluate multiple IoT nodes, gateways and distributed evidence collectors.

02 — Hardware-Backed Identity

Extend device assurance using hardware-backed credentials or trusted execution mechanisms.

03 — Scalable Evidence Infrastructure

Evaluate scalable content-addressed storage and blockchain anchoring for larger evidence volumes.

04 — Advanced Forensic Analytics

Extend rule-based verification with richer temporal, behavioral and anomaly analysis.

CORE CONTRIBUTION

ChainForensics provides an end-to-end mechanism for preserving security-relevant IoT events and independently verifying whether reconstructed evidence remains consistent with its trusted blockchain commitment.

Blockchain supplies the external commitment reference; the forensic verifier performs reconciliation and determines the finding.

FROM “RECORDED” TO “INDEPENDENTLY VERIFIABLE.”

24 / 25

CHAINFORENSICS

Thank You

Blockchain-Backed IoT Forensic Evidence Platform

IoT Security × Digital Forensics × Blockchain

IoT Event → Digital Evidence → Trusted Commitment → Verification

Questions & Discussion

Woxsen University

School of Technology
